The Roof: Your Single Biggest Priority

If you tackle only one upgrade, make it the roof. Around 70–80% of heat loss in a glazed conservatory occurs through the roof. Polycarbonate panels are among the worst-performing building materials for thermal retention — they let heat pour out in winter and flood in during summer.

Insulated Roof Panels

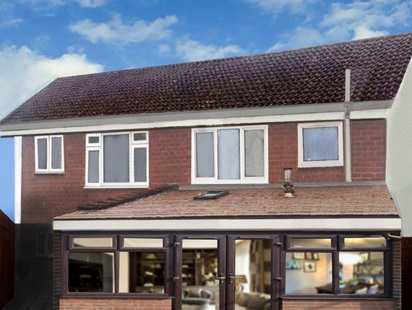

Replacing polycarbonate with insulated roof panels (often called a solid insulated roof or warm roof system) is the most effective single upgrade available. These systems use a timber-framed structure with rigid insulation built in, finished with lightweight roofing tiles on the outside and a plastered ceiling on the inside.

The result is a roof that performs like a proper house roof. A UK homeowner who had a warmer roof system installed — using typical lightweight tiles — reported that on a night when the outside temperature was -5°C, the interior temperature sat between 10°C and 12°C with no heating running at all. The full installation, including plastering and electrical work, was completed in five days.

The Local Authority Building Control (LABC) guidance on solid-roof conservatories confirms that replacing a translucent roof with a solid one triggers a building regulations application, and the new thermal element must comply with Part L (energy efficiency standards). LABC also advises that foundations should be checked by trial hole before adding a heavier solid roof, since the additional loading exceeds what the original conservatory structure was designed for (LABC Solid-Roof Conservatories Guide).

The Planning Portal confirms that while conservatories are normally exempt from building regulations, any new structural opening between the conservatory and the main house requires approval, even if the conservatory itself is exempt — a useful point to confirm before your project starts (Planning Portal).

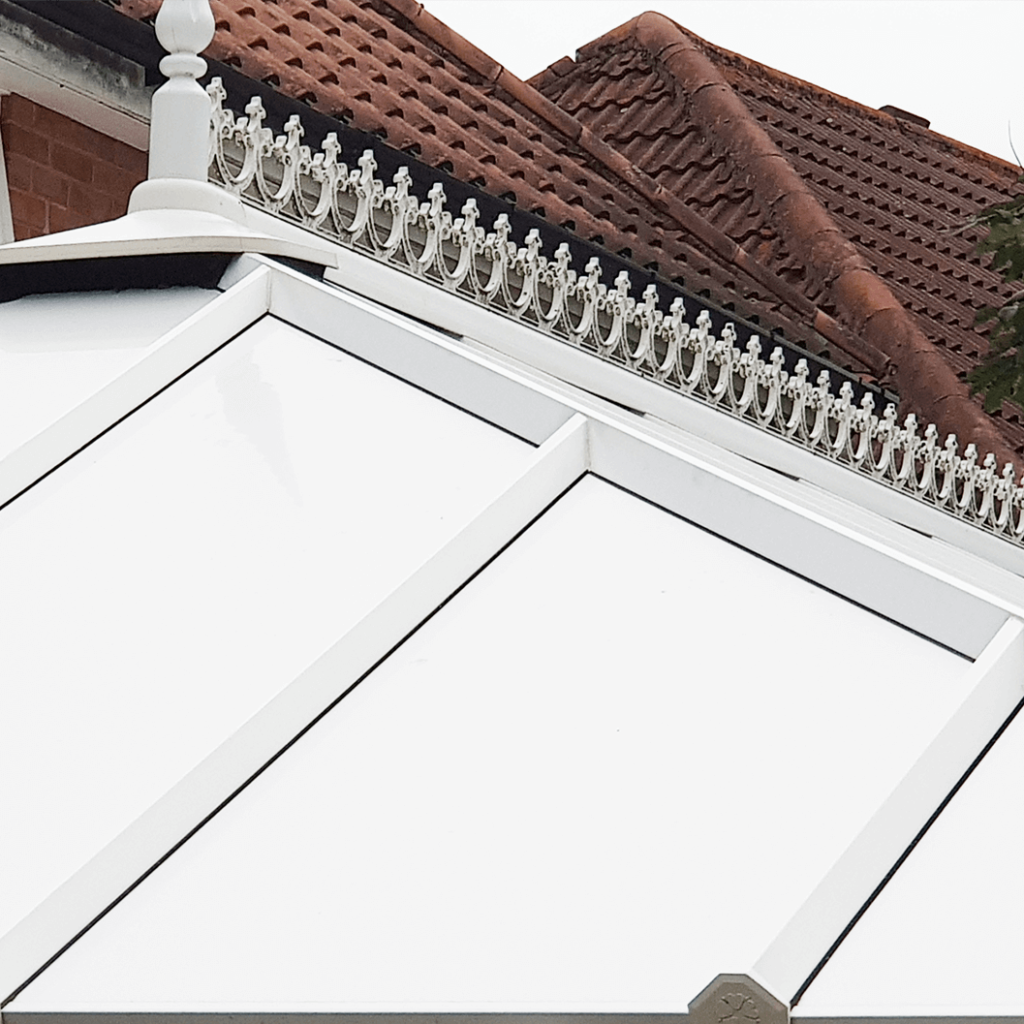

High-Performance Glazed Roofs

If you want to keep natural light flowing in from above, a glazed roof remains possible — but standard double glazing is not enough. Look for:

• Solar-control glass — reduces solar gain in summer without significantly reducing light
• Triple glazing — improves thermal performance over standard double glazing
• Thermally broken frames — prevents cold bridging through the structural elements

A glazed roof with solar control performs well for a dining room where light is a priority. For a family room used throughout the day, a solid insulated roof tends to offer a quieter, more regulated environment.

Managing Warmth and Glare: Walls and Glazing

Once the roof is addressed, the walls and glazing become the next focus.

Wall Insulation

Most conservatory walls are single-skin brickwork or uPVC-framed panels with minimal insulation. Installing insulated internal wall panels — typically 50mm rigid foam faced with a decorative board or plasterboard — reduces heat loss through the walls and eliminates cold surfaces that contribute to condensation.

The Glass and Glazing Federation’s Good Practice Guide for conservatories highlights that glazing performance, ventilation design, and condensation control all work together to create a usable glazed living space (GGF Good Practice Guide). Getting the walls right supports all three.

Managing Glare

Glare from low winter sun and high summer sun affects both dining and family use. Practical solutions include:

• Thermal blinds — close-fitting pleated or roller blinds that double as sun control in summer and added insulation at night
• External shading — a fixed or retractable awning significantly reduces solar gain before it enters the room
• Solar-control glass — applied as a retrofit window film or specified when replacing glazing

The Energy.gov guidance on sunspaces notes that a well-designed overhang may be all that is needed to shade vertical glazing in summer, while maximising heat gain from low winter sun (Energy.gov). Operable roof vents also help — warm air rises and needs somewhere to exit if the space is to stay cool in summer.

Flooring: The Detail That Changes How the Room Feels

Temperature is measured at head height, but comfort is felt at foot level. Cold floors make a room feel cold regardless of the air temperature, and they create a condensation risk in rooms with higher moisture levels.

Good flooring choices for an insulated conservatory dining or family room include:

• Engineered wood or luxury vinyl tile (LVT) over insulated board — warm underfoot, durable, and easy to clean; suitable for dining use with rugs added for family living
• Porcelain tile over underfloor heating — harder and cooler to the touch than wood, but excellent when paired with a wet or electric underfloor heating system
• Carpet or carpet tiles — adds warmth and sound absorption for a family room; avoid in dining areas where spills are likely

If the existing concrete base is cold and damp, laying a floating insulated subfloor before any finish is the most effective fix. A 25–50mm insulated board raises the floor level slightly but delivers a noticeable improvement in both warmth and comfort underfoot.

Underfloor Heating

For a dining room or family room, underfloor heating (UFH) provides the most consistent, unobtrusive warmth. It avoids the wall space taken up by radiators and distributes heat evenly — particularly useful in rooms with large areas of glazing where radiators struggle to compensate for cold surfaces.

Electric UFH is the easiest to retrofit in an existing conservatory. Wet (water-based) UFH is more efficient long-term if you are connecting the space to your main central heating system.

Addressing Condensation and Ventilation

Condensation is the most common complaint in poorly insulated conservatories. It appears on glass, walls, and floors, causes mould over time, and signals that the space is not properly balanced between moisture production, heating, and airflow.

NHBC guidance on condensation explains that the issue stems from the interaction of moisture sources, surface temperatures, heating patterns, and ventilation — not just one factor in isolation (NHBC, Condensation in Your Home, 2024). The same is true in converted conservatories.

Practical steps to prevent condensation include:

• Raise surface temperatures — insulated roof and wall panels eliminate the cold surfaces that condensation forms on
• Add controlled ventilation — a trickle vent in the glazing or a small mechanical extract fan prevents moisture from building up
• Install a vapour control layer behind wall panels if the structure is exposed to persistent moisture
• Heat the space consistently — a room that cycles between very warm and very cold creates more condensation risk than one maintained at a steady temperature

The GGF Good Practice Guide also recommends that conservatory designs account for glazing performance and ventilation together, recognising that sealed, well-insulated spaces need designed airflow to stay comfortable and condensation-free (GGF Good Practice Guide).

Design Ideas for a Warm, Comfortable Conservatory

Insulation creates the conditions for comfort. Design makes the room worth spending time in.

For a Dining Room

• Position the table towards the centre of the room, away from cold glazed walls in winter
• Use pendant or recessed lighting to create an evening atmosphere independent of natural light
• Add a large rug under the dining table to define the space and add warmth underfoot
• Choose a colour palette with warm neutrals to counteract the cool tones of glass and white frames
• Install a dimmer switch — adjustable lighting extends the room’s usability from daytime family lunches to evening dinner parties

For a Family Room

• Built-in storage along one or two walls reduces clutter and improves acoustics
• A sofa facing away from direct sunlight prevents glare on screens
• Layer rugs, throws, and cushions to make the space feel warm and intentional
• Add blackout or thermal blinds to give full control over light levels — especially useful for film nights
• Plants bring the garden inside and suit a glazed room well; choose varieties that tolerate variable light and humidity

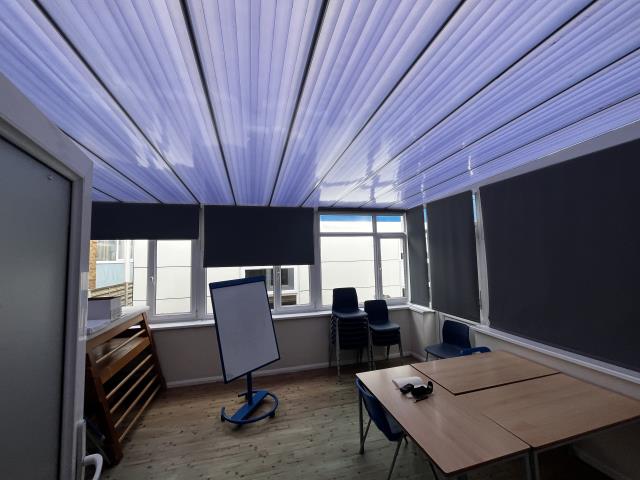

Before and After: What a Full Conversion Looks Like

A UK homeowner who used his conservatory as a home office faced the familiar problem: the space was too hot in summer and too cold in winter, making it uncomfortable for daily use. After a full roof replacement using a roof system with tiles, the transformation was immediate.

The full installation — including plastering and electrical work — took five days. The space went from an occasional overflow room to a practical, comfortable year-round workspace.

The same outcome is achievable for dining and family rooms. The combination of an insulated solid roof, wall panels, appropriate glazing, and controlled ventilation consistently transforms cold, single-season conservatories into rooms people actually choose to use.

Start Your Conservatory Conversion

The difference between a conservatory you avoid and one you live in comes down to insulation. Get the roof right first. Add wall panels and controlled heating next. Then finish the floor and the details that make the room feel like part of your home.

Every family’s space is different — which is why seeing real examples from similar projects makes the decision much easier. View family-room conversion examples to explore what’s possible for your conservatory and find the approach that fits your layout, your lifestyle, and your budget.

Frequently Asked Questions

What is the best type of conservatory insulation for use as a dining room?

The most effective combination for a dining room is an insulated solid roof (which eliminates heat loss overhead), insulated wall panels (which raise surface temperatures and prevent condensation), and underfloor heating. Together, these make the space consistently warm in winter and manageable in summer, without relying on portable heaters or fans.

Do I need building regulations approval to insulate my conservatory roof?

If you are replacing a translucent polycarbonate or glass roof with a solid insulated roof, building regulations approval is required in England. LABC guidance confirms the new thermal element must comply with Part L (energy efficiency), and foundations should be checked to confirm they can support the additional loading. A standard conservatory without structural changes to the house boundary wall is normally exempt from regulations, but the roof change triggers a separate approval process.

How much does it cost to insulate a conservatory for year-round use?

A solid insulated roof replacement typically costs between £4,000 and £15,000 depending on the size of the conservatory and the finish chosen. Adding wall panels, flooring, and underfloor heating brings the total for a full conversion to between £8,000 and £20,000. Costs vary significantly by region and specification. Many providers offer finance options that spread the cost over monthly payments.

Will insulating my conservatory cause condensation problems?

Properly specified insulation reduces condensation rather than causing it. Cold surfaces are the primary cause of condensation in conservatories — insulated panels raise surface temperatures so moisture in the air no longer condenses on them. Adequate ventilation (trickle vents or extract fans) should be included in any conversion to manage moisture from cooking and occupancy.

Can I connect my insulated conservatory to my main central heating system?

Yes — once a solid insulated roof is installed and the space meets Part L thermal requirements, connecting it to the main central heating system is straightforward. This typically requires a building regulations check to confirm the heating system has sufficient capacity. Underfloor heating is a popular choice for conservatory conversions because it works efficiently at lower water temperatures and frees up wall space.

How long does a conservatory roof insulation project take?

A solid roof replacement, including plastering and electrical finishing, typically takes between three and seven days for a standard-sized conservatory. The modular nature of most warm roof systems allows installers to work efficiently with minimal disruption to daily life.

Safe DIY Options for Conservatory Roof Insulation

The safest DIY approach centres on internal multifoil installation — fitting insulation to the inside face of the existing roof without altering the roof structure itself. Here is what that process looks like in practice:

1. Fix timber battens to the existing rafters or beams using appropriate fixings (FastFix Conservatory Screws work well here). Battens create the necessary air gap between the roof and the insulation layer — do not skip this step.
2. Cut and staple the multifoil to the battens using a heavy-duty staple gun. Work across the roof panel by panel, overlapping joins by at least 50mm.
3. Seal every join with ThermaSeal Foil Joining Tape to create a continuous, airtight layer. Poor taping is one of the most common sources of reduced performance.
4. Add counter battens over the insulation layer to create a second air gap on the room-facing side. Multifoil insulation relies on reflective air gaps to perform — without them, the product does not achieve its rated U-value.

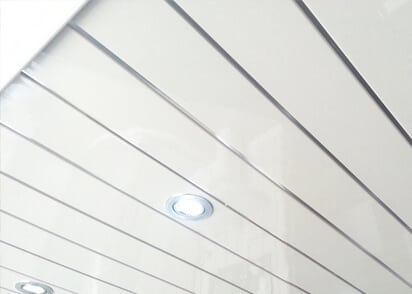

5. Fit your chosen ceiling finish — plasterboard for a solid result, or a lightweight white matchboard cladding like ConservaClad if you want a simpler, lower-cost option that does not add significant weight.

Other lower-risk DIY options include thermal conservatory blinds, which improve comfort without touching the structure at all, and window film products such as ThermaFrost, which reduce solar gain on glass panels. These are useful supplementary measures but will not deliver the same thermal improvement as a full roof insulation installation.

Risky DIY Areas to Approach With Caution

Not everything about a conservatory roof insulation project is straightforward. Several areas carry real risks if handled without the right knowledge.

Structural loading is the most significant. Adding insulation, battens, counter battens, and a ceiling finish increases the load on the existing conservatory frame. Most standard conservatories can handle this additional weight — but not all. According to guidance from LABC (Local Authority Building Control), replacing or significantly modifying a conservatory roof can require a structural check to confirm that existing foundations, frames, and door supports are adequate to carry the new load. Poor foundations or frames without steel inserts in the supporting columns may not cope.

This matters in a DIY context because an installer does not automatically have a surveyor’s assessment behind them. If you notice any signs of movement, cracking, or settlement in your conservatory frame, do not proceed with adding additional roof weight until a professional has checked the structure.

Vapour control is the second risk area. Conservatory roofs sit in a thermally complex environment. The NHBC has documented how interstitial condensation — moisture that forms inside the building fabric rather than on visible surfaces — can cause mould growth, rot in roof timbers, and reduced insulation performance over time. This occurs when warm, moist indoor air migrates into the insulation layer and meets a cold surface. A correctly installed vapour control layer on the warm side of the insulation reduces this risk significantly. Skipping it, or positioning it incorrectly in relation to the insulation, is one of the more consequential errors a DIYer can make.

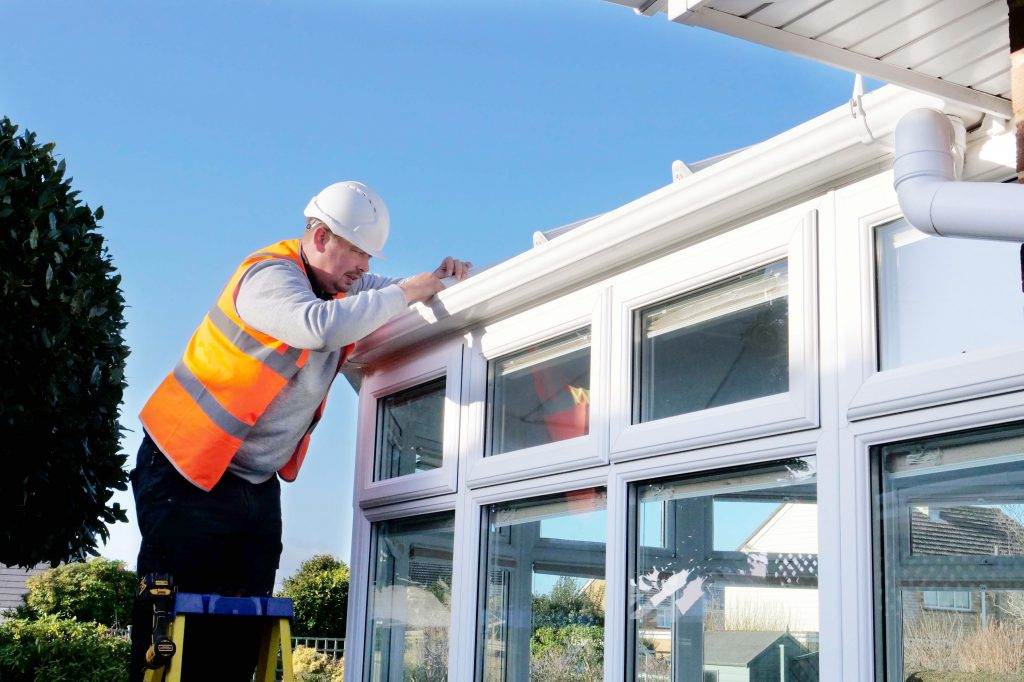

Working at height also deserves a mention. Conservatory roofs require working on a ladder or scaffold tower at ceiling height, often in awkward positions. Falls are the most common cause of serious injury in home DIY projects. Use the right equipment, work with a partner who can hold ladders and pass materials, and do not rush.

Foil Insulation: What It Does Well and Where It Has Limits

Multifoil insulation products like EcoQuilt Expert and YBS SuperQuilt are among the most popular choices for conservatory roofs — and for good reason. They are thin, flexible, easy to handle in confined spaces, and effective at reducing radiant heat transfer in both directions: keeping warmth in during winter and reflecting solar gain out during summer.

YBS SuperQuilt, for example, consists of 19 layers of aluminium foil and wadding, and is the only fully certified multifoil insulation product currently on the UK market.

That said, multifoil insulation is not magic. Its performance depends entirely on correct installation. The reflective layers need air gaps on both sides — the batten and counter-batten arrangement described above is not optional, it is what makes the product work. A multifoil product stapled directly against a surface with no air gap will perform far below its rated specification.

Foil insulation also works best as part of a system. Combining it with a breathable vapour barrier and an appropriate ceiling finish gives you a complete thermal and moisture-management assembly. Cutting corners on any one component reduces the performance of the whole.

Condensation and Ventilation: What You Must Not Ignore

Condensation is one of the most common reasons conservatory insulation projects fail — or cause problems down the line. Getting it wrong does not always show immediately. Moisture can accumulate inside a poorly detailed roof assembly for months before a damp patch appears on the ceiling.

The root cause is usually one of two things: no vapour control layer, or inadequate ventilation after the ceiling is fitted.

Approved Document F, the government’s official guidance on ventilation requirements for buildings in England, makes clear that any enclosed space in a dwelling must maintain adequate air quality and moisture control. DIY insulation that creates a sealed void with no ventilation pathway creates exactly the kind of trapped, stale air environment that leads to condensation damage.

Practically speaking, this means:

• Always fit a breathable vapour barrier on the warm (room-facing) side of the insulation.
• Do not fully seal the roof void without a ventilation strategy — ensure some airflow is maintained between the insulation and the outer roof skin.
• Use materials rated for the application — standard builders’ foil is not the same as a purpose-designed vapour control membrane.

If your conservatory is already showing signs of condensation before you start — misting between double-glazed panels, dark spots on frames, or moisture on walls — address those issues first. Insulating over an existing moisture problem will make it worse, not better.

Warranty Risks: Check Before You Start

This is a step many homeowners skip, and it can be an expensive oversight. Most conservatories come with warranties covering the frame, the roof panels (glass or polycarbonate), the seals, and the installation workmanship. Adding internal insulation may be treated as an alteration under the terms of your roof warranty — particularly if it involves fixing directly to roof bars or altering how the panels sit.

According to Conservatory Insulations UK, insulating the inside of a conservatory roof typically does not affect frame or glazing warranties, because the external structure is unchanged. However, your roof panel warranty may be impacted, depending on how your installer or manufacturer has worded the coverage.

The practical steps here are straightforward:

• Read your original warranty documents before starting any work. Look for exclusions related to modifications, alterations, or internal fitting work.
• Contact your warranty provider directly and ask for written clarification on whether internal insulation voids any coverage.
• Choose reversible installation methods where possible. Insulation fitted with battens and screws can be removed if necessary; adhesive-bonded systems generally cannot.

If your conservatory is still within its original warranty period, a phone call to your installer or manufacturer before you start is worth the fifteen minutes it takes.

When DIY Will Not Solve the Problem

Some conservatory thermal problems cannot be fixed by insulating the roof alone — and attempting to address them that way will produce disappointing results.

If your conservatory loses heat primarily through the walls and floor, roof insulation will make a noticeable but modest difference. A conservatory that uses single-skin brickwork, uninsulated dwarf walls, or a suspended floor without insulation will continue to haemorrhage heat regardless of how well the ceiling performs.

If your glazing is old or poorly sealed, draughts and cold radiation from the glass will offset much of the benefit from overhead insulation. Upgrading to better-performing glazing panels, or adding window film as a short-term measure, addresses the problem at the source.

If structural movement has caused gaps, cracks, or poorly fitting frames, insulation will not fix these — and fitting a ceiling finish over them may conceal problems that will worsen over time.

If your conservatory is attached to a habitable room that requires fire separation, or if you plan to use the insulated conservatory as a permanent room rather than an occasional space, Building Regulations may apply. According to the Planning Portal, significant changes to thermal elements in a dwelling — including roof insulation upgrades — can trigger a requirement for Building Regulations approval and may require the thermal performance of the element to be upgraded to a specified standard under Approved Document L. If you are unsure whether your project falls within this category, contact your local building control authority before starting work.

When to Get a Professional Survey

A professional survey is worth arranging before any conservatory insulation project where:

• The conservatory is more than 15 years old and you have no record of any structural assessment.
• You have noticed movement, cracking, or settlement in the frame, floor, or walls.
• You are planning to replace the existing polycarbonate or glass roof with a solid insulated roof — this is a structural change that requires Building Regulations approval and, per LABC guidance, should be assessed by a surveyor or qualified structural engineer before work begins.
• You are uncertain about your building regulations position — for example, if the conservatory connects to the main house through a door that has been removed, making it part of the heated dwelling.

A survey from a reputable installer typically takes an hour or two and will tell you whether your frame, foundations, and supporting structure can take the additional load of an insulated ceiling. Many installation companies offer free surveys as part of a no-obligation quote process.

Use This Checklist to Make the Right Call

Before you decide whether to proceed with DIY or bring in a professional, work through the following checklist. It is designed to help you match the right approach to your specific situation.

Go ahead with DIY if:

• Your conservatory frame shows no signs of movement, cracking, or distortion
• You have checked your warranty documentation and confirmed internal insulation will not void coverage
• You plan to use a purpose-designed multifoil kit with correct batten depths and foil tape
• You are comfortable working at height safely and have a second person to assist
• You understand how to fit a vapour barrier and are planning to include one
• Your project does not involve replacing or structurally altering the existing roof panels
• You are not required to make a Building Regulations application for the scope of work planned

Call a professional if:

• Your conservatory shows any signs of structural movement or settlement
• You are replacing a polycarbonate or glass roof with a solid roof
• You want a guaranteed U-value and a warranty-backed installation
• You are not confident about moisture management, vapour barriers, or ventilation detailing
• Your conservatory is more than 15 years old with no prior structural assessment
• Your project triggers Building Regulations and you need a compliant installation record

Next steps: If you have worked through the list above and the DIY route looks right for your situation, the practical starting point is measuring your roof area accurately and selecting a multifoil kit sized for your space. If the checklist has flagged one or more reasons to get professional input, book a survey — most reputable companies offer them at no charge and will give you a clear picture of what your project actually involves before you commit to anything.

A well-insulated conservatory roof makes a tangible difference to comfort, energy use, and how much you actually use the space. The key is getting the approach right the first time.

FAQ

What is the best insulation for a DIY conservatory roof?

Multifoil insulation kits — such as EcoQuilt Expert or YBS SuperQuilt — are the most popular choice for DIY conservatory roof insulation. They are lightweight, flexible, and designed for internal installation without requiring structural alterations. Both products require correct installation with air gaps on each side to achieve their rated thermal performance.

Does DIY conservatory roof insulation require Building Regulations approval?

It depends on the scope of work. Fitting internal insulation to an existing conservatory roof does not typically require Building Regulations approval. However, replacing a translucent roof with a solid insulated roof is a structural change and does require approval. According to the Planning Portal, significant changes to thermal elements can trigger a requirement under Building Regulations and Approved Document L. Check with your local building control authority if you are unsure.

How much does DIY conservatory roof insulation cost compared to professional installation?

DIY insulation materials typically cost between £20 and £50 per m², depending on the product and ceiling finish chosen. Professional installation companies can charge several thousand pounds for a complete insulated conservatory ceiling. The DIY route saves money but requires time, care, and the right tools.

Will insulating my conservatory roof cause condensation problems?

It can, if the installation is done incorrectly. The most common causes are missing or incorrectly positioned vapour barriers and inadequate ventilation in the roof void. As the NHBC notes, interstitial condensation — moisture forming inside the building fabric — can damage roof timbers and reduce insulation performance over time. Using a breathable vapour barrier and maintaining ventilation pathways reduces this risk significantly.

Will DIY conservatory roof insulation void my warranty?

In most cases, fitting internal insulation does not affect the frame or glazing warranty, because the external structure is unchanged. However, your roof panel warranty may be affected if the insulation is treated as an alteration to the roof. Always check your original warranty documents and contact your warranty provider for written confirmation before starting work.

How long does DIY conservatory roof insulation take?

A standard conservatory roof of 15 to 20 m² can typically be insulated over a weekend by a competent DIYer. The process involves fixing battens, stapling and taping the multifoil, adding counter battens, and fitting the ceiling finish. Working with a partner makes the job safer and faster.

When should I choose professional installation over DIY?

Professional installation is the right choice when your conservatory frame shows signs of movement or settlement, when you are replacing the existing roof rather than adding internal insulation, when you need a warranty-backed installation, or when you are not confident about vapour barrier detailing and moisture management. A free survey from a reputable installer will give you a clear picture of which route is appropriate for your project.

Methodology or Editorial Process

The article’s conclusions are drawn from a comprehensive synthesis of practical installation methods, official Building Regulations guidance, expert sources like LABC and NHBC, and manufacturer information. It cross-references risks such as structural loading and condensation with authoritative references and real-world product installation sequences. Cost and warranty considerations are supported by industry insights, while the decision checklist consolidates these points into clear criteria. The coverage balances DIY feasibility with cautions grounded in available supporting sources rather than exhaustive research.

At-a-Glance Comparison Matrix

Use this matrix as a starting point. Detailed analysis of each factor follows below.

Factor	CosyPanels	Eurocell Equinox	LEKA System	ThermoPanels	Stadur FB-1
System type	Insulated panel overlay	Tiled warm roof	Composite warm roof	Insulated panel overlay	PVC sandwich panel
Best U-value	Not publicly disclosed	0.15 W/m²K	0.10 W/m²K	Not disclosed (XPS λ: 0.034)	0.62 W/m²K (44mm)
Max insulation thickness	Up to 50mm foam	Part of full warm roof build-up	PIR-core system	35mm standard	44mm standard
Structural change required?	No	Yes — full replacement	Yes — full replacement	No	No
Typical installation time	1 day	2 days	A few days	DIY-accessible	DIY-accessible
Warranty	10-year product / 2-year IBG	10-year	40-year	Not disclosed	5-year UV on PVC facings
Building Regs compliant	Not stated	Yes — Part L	Yes — MFA certified	Not stated	Not stated
Approx. panel weight	Lightweight	Not disclosed	Lightweight	Not disclosed	~5.0 kg/m² at 44mm
Colour/finish options	Colour+ range	16 tile styles; 8 fascia colours	Range of tile colours	Renolit film colour range	White (RAL 9016) standard

Thermal Performance: How Do These Brands Compare on U-Values?

What U-value does the LEKA System achieve?

The LEKA System achieves U-values as low as 0.10 W/m²K — the strongest result in this comparison. That figure comes from its composite construction: GRP (Glass Reinforced Plastic) rafters, PIR (polyisocyanurate) insulation sheets, and load-bearing external boards made from high-grade plastic and XPS foam. An ECO variant uses EPS polystyrene in place of PIR. According to LEKA’s system page, the GRP frame also eliminates the condensation and thermal bridging problems common in aluminium or steel-framed systems.

What U-value does Eurocell Equinox achieve?

Eurocell Equinox is a tiled warm roof system that achieves U-values as low as 0.15 W/m²K, driven by high-performance styrene insulation within the roof build-up. The aluminium rafters are separated from the 18mm OSB timber deck, creating an air gap that reduces condensation risk as well as heat transfer. The Equinox product page details both the thermal specification and the structural design.

What U-value does Stadur FB-1 achieve?

Stadur FB-1 is a PVC-faced XPS-core sandwich panel with declared U-values published in its technical datasheet. At 44mm — the maximum standard thickness — the best-case U-value is 0.62 W/m²K using the lower-conductivity XPS core (λD 0.029). With the standard core (λD 0.033), the same panel gives 0.70 W/m²K. A 32mm panel sits at 0.84 W/m²K. These figures represent a clear improvement over polycarbonate, but fall short of the warm roof systems above.

What U-values do CosyPanels and ThermoPanels achieve?

Neither CosyPanels nor ThermoPanels publish declared U-values on their main product pages. CosyPanels uses up to 50mm of high-density foam insulation; ThermoPanels specifies an XPS core with a thermal conductivity of λ: 0.034 W/mK, as detailed in the ThermoPanels brochure. For either system, request the declared U-value for the full assembly in writing before committing.

Panel Composition and Thickness

CosyPanels

CosyPanels are precision-manufactured insulated panels that fit directly over an existing conservatory roof framework. Each panel contains up to 50mm of high-density foam insulation and slots into the glazing bars without any structural modification. The system keeps warmth in during winter and heat out during summer — and fits your current framework without alteration.

Eurocell Equinox

Equinox is a full warm roof replacement. The build-up layers a structural ring beam, aluminium rafters, an 18mm OSB deck, and styrene insulation — finished with a tiled outer surface. The system is manufactured from 75% recycled content and carries full Part L Building Regulations compliance. Sixteen tile styles are available across steel, composite slate, and GRP ranges.

LEKA System

The LEKA warm roof is built in four layers: GRP rafters onto the ring beam, PIR insulation sheets, load-bearing outer boards, and a tiled weatherproof finish. GRP avoids the moisture absorption of timber and the thermal bridging of metal. It also has a higher tensile strength than steel, which matters for long-term structural performance.

Renolit ThermoPanels

ThermoPanels are composite insulated panels with a PVC outer layer and an XPS foam core (density ≥33 kg/m³). Standard panel sizes are 3,000 × 1,000mm and 4,000 × 1,000mm, at thicknesses of 25mm and 35mm. Narrower panels (2,000 × 1,000mm) are also available at 28mm and 32mm. The outer surface comes in standard white (RAL 9016, RAL 9003, or RAL 9001) or a premium Renolit film colour finish applied on HPL — a wider colour range for those wanting a more personalised result.

Stadur FB-1

Stadur FB-1 panels consist of an XPS foam core bonded to hard PVC facings on both sides, available in 1.0mm, 1.3mm, 1.5mm, or 2.0mm facing thickness. The panels are humidity-resistant, high-impact resistant, and carry a 5-year UV guarantee on the PVC facings. They’re German-manufactured and widely used across construction applications, adapted for conservatory use by specialist installers.

Weight and Load Considerations

Weight directly affects whether your existing conservatory frame can support the new roof — and the answer varies significantly by system type.

• CosyPanels: Lightweight panels over the existing glazing bars. No structural modification required.
• Eurocell Equinox: A complete roof replacement. Frame suitability should be confirmed before installation.
• LEKA System: Engineered to be lightweight, but LEKA advises that installers must check existing windows, doors, and glazing can support the roof weight.
• ThermoPanels: Lightweight. Individual panel weights are not published, but the XPS core keeps mass low.

Comparison Methodology and Editorial Process

The article’s conclusions derive from a systematic comparison using authoritative U-value methodologies outlined in BRE’s BR 443, ensuring consistent thermal performance metrics. Information was sourced from primary brand technical pages and brochures, allowing direct verification of claims such as U-values, materials, warranties, and installation details. Where data was unavailable, the article transparently noted this, avoiding unsupported assertions. This approach enables an accurate, balanced evaluation for readers considering conservatory roof insulation options.



Is a warm roof right for your home?

A warm roof is ideal for homeowners who want to turn their conservatory into a practical living space without constant temperature changes. It suits both new installations and older conservatories that need an upgrade. To find out more about replacing or insulating your conservatory roof, complete the form on this page and we will be in touch.
